ICeGaN® Application Interface Board
A quick way to trial of ICeGaN® devices without having to re-design your PCB
In a similar way to ICeGaN® easing access to GaN, our Application Interface Boards (AIBs) ease access to ICeGaN®.

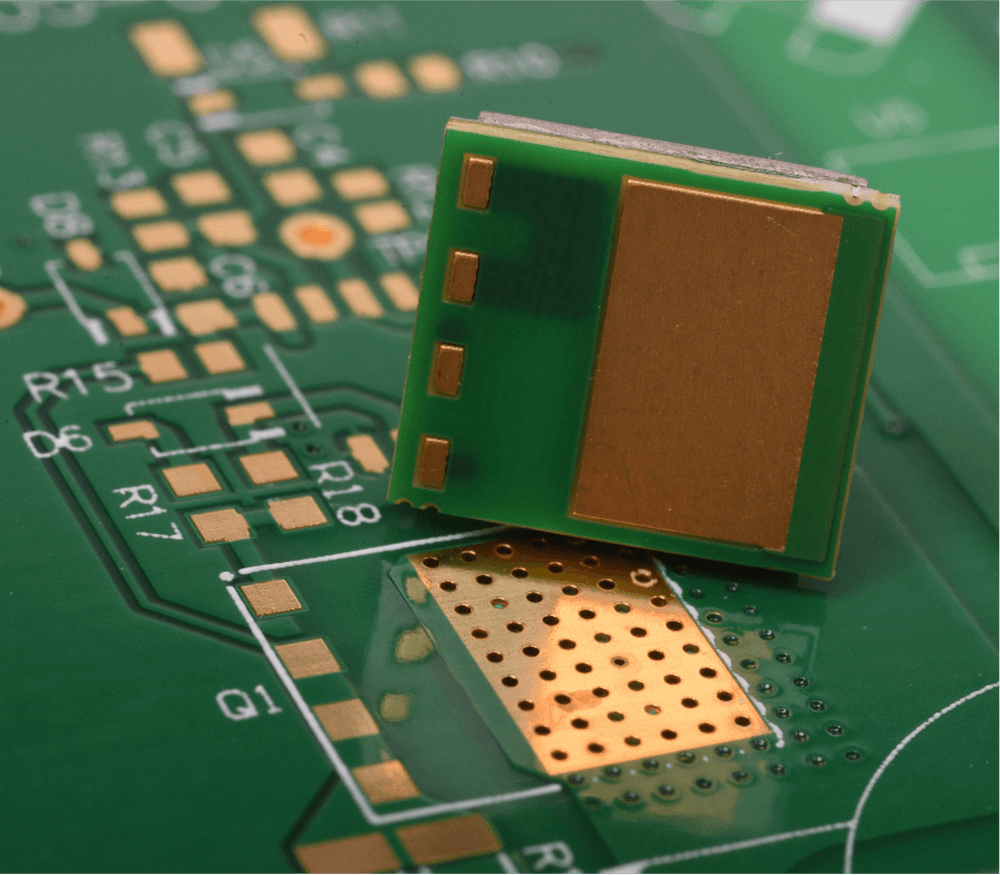

An Application Interface Boards is an adaptor PCB that maps each pin/signal from a ICeGaN® device on the topside of the PCB, to each corresponding pin/signal of an alternative component footprint on the bottom side of the PCB, whilst also providing the necessary decoupling capacitor for VDD.
Hence an ICeGaN® device equipped with a suitable AIB can easily be fitted using normal soldering techniques to a recipient PCB that was originally designed for an alternative MOSFET/HEMT.
Watch how to use an AIB on our YouTube channel - click here.
AIBs Table
Documents
Application Notes
CGD-AN2201-ICeGaN in LLC Application Note
2022-03-21 | .pdf | 2386.29KB
CGD-AN2206-Current Sensing with ICeGaN Application Note
2024-03-20 | .pdf | 1535.44KB
CGD-AN2207-ICeGaN HEMT PCB Layout Guide
2022-03-21 | .pdf | 1821.46KB
CGD-AN2302-How to Use ICeGaN
2024-05-27 | .pdf | 7380.81KB
User Guide
CGD-UG2201_Application Interface Board User Guide
2022-03-21 | .pdf | 1892.95KB
